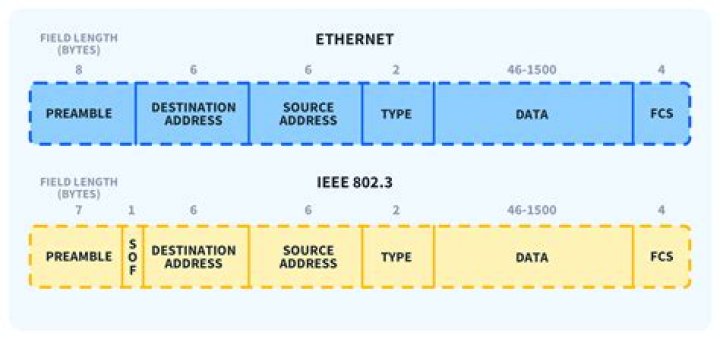

Ethernet header

What is an Ethernet frame header? An Ethernet frame contains a header, data section, and footer, the total length of which does not exceed 1518 bytes. The Ethernet header contains the addresses of the sender and intended recipient. Data sent over Ethernet is automatically sent to all devices on the network.

What is preamble in Ethernet?

The preamble is a 7-byte field in the Ethernet frame that helps the receiver recognize that it is real data (Ethernet frame) and not random noise in the transmission medium. It acts as a buzzer indicating data entry.

What is the minimum and maximum size of an Ethernet frame?

The original IEEE Ethernet standard established a minimum Ethernet frame size of 64 bytes and a maximum size of 1518 bytes. Then the maximum size was increased to 1522 bytes to allow for VLAN tagging. The minimum size of an Ethernet frame carrying an ICMP packet is 74 bytes.

What are the Ethernet frame parts?

Ethernet frames are structured differently according to the Ethernet standard and contain more or fewer data fields due to the network protocol. Usually an Ethernet frame consists of 3 parts. These are the Ethernet header (preamble, SFD, destination, source, and type), encapsulated data (data and buffer), and Ethernet trailer (FCS). The following figure shows an example of an Ethernet frame to give you a basic understanding of the frame structure.

What does the format for Ethernet frames specify?

Ethernet Frame Format (IEEE) INTRODUCTION An Ethernet frame begins with a 7-byte preamble. It is an interlaced pattern of zeros and ones that marks the beginning of a frame and allows the sender and receiver to establish bit synchronization. The original PRE (preamble) was introduced so that some bits could be lost due to signal delays.

What is Ethernet frame structure?

An Ethernet frame begins with a header that includes the source and destination MAC addresses. The central part of the frame contains the actual data. The frame ends with a field called "Frame Check Sequence" (FCS). The structure of the Ethernet frame is defined in the IEEE standard.

Does MTU size include the Ethernet header?

MTU. MTU is the maximum payload length for a given transmission medium. For example, the MTU for Ethernet is typically 1500 bytes. (The maximum packet length for Ethernet is typically 1518 bytes, but this includes 14 bytes Ethernet header and 4 bytes CRC, leaving 1500 bytes of payload.) .

:diamond_shape_with_a_dot_inside: What is Ethernet frame format?

Ethernet MAC data frame format. The standard Ethernet frame in use today is called the Type II Ethernet frame. It is a frame format developed by members of the Layer 2 stack, which is then passed to the Layer 1 physical layer for conversion to a broadcast format.

:diamond_shape_with_a_dot_inside: What is an ethernet frame header format

Ethernet format An Ethernet frame consists of three parts: the Ethernet header (preamble, SFD, destination, source, and type), encapsulated data (data and buffer), and the Ethernet trailer (FCS). The following image shows an example of an Ethernet frame.

:diamond_shape_with_a_dot_inside: What does the header of an Ethernet frame contain?

Each Ethernet frame begins with an Ethernet header that contains the source and destination MAC addresses in the first two fields. The central part of the frame consists of user data, including the headers of other protocols (e.g. Internet protocol) carried in the frame.

:diamond_shape_with_a_dot_inside: Which is the optional format in Ethernet header?

Although several optional formats are used to extend the basic functionality of the protocol. An Ethernet frame starts with a preamble and SFD, which operate on the physical layer. The Ethernet header contains both the source MAC address and the destination MAC address, followed by the frame payload. The last field is CRC, which is used to identify the error.

:diamond_shape_with_a_dot_inside: What is the Ethernet frame format for

The following is a description of the Ethernet frame format described in the IEEE specification. The specification defines a 14-byte data channel header followed by a logical channel control header, which is defined by the specification. The following diagram analyzes an Ethernet frame: DATA LINE HEADER.

How big is a Ethernet frame in bytes?

Remark. The IEEE Ethernet frame size ranges from 64 to 1518 bytes, including the length of the data (46 to 1500 bytes). Extended Ethernet frame (Ethernet II frame) at a glance: The IEEE standard base frame format is described above.

What is Internet header length?

The length of the internet header is the length of the internet header in 32-bit words and thus indicates the beginning of the data. Note that the minimum value for a valid header is 5.

:brown_circle: What is Ethernet 2 frame?

EtherType is a two-byte field in an Ethernet frame. It is used to indicate which protocol is encapsulated in the payload of the frame. This same field is also used to indicate the size of certain Ethernet frames. EtherType was first defined using the Ethernet II frame standard and later adapted to the IEEE standard.

Ethernet frame header format

Ethernet in networking is a LAN technology. The Ethernet frame format has several fields. Ethernet frame size range = . Ethernet header size = 14 bytes.

:brown_circle: What is an ethernet frame header diagram

An Ethernet frame begins with a header that includes the source and destination MAC addresses. The central part of the frame contains the actual data. The frame ends with a field called "Frame Check Sequence" (FCS).

:eight_spoked_asterisk: How does the Ethernet frame format work in OSI?

The Ethernet frame format is a contiguous sequence of alternating zeros and ones that indicate when the frame begins and establish synchronization between the transmitter and receiver. There is an Ethernet frame in the data link layer of the OSI model (which has 7 layers) and it is a PDU (also known as a protocol data unit).

How big is an Ethernet frame in bytes?

The Ethernet frame size ranges from 64 to 1518 bytes, depending on the size of the data being sent. In the OSI model, the frame is located at the data channel layer and is responsible for error-free transmission and dividing the bitstream into blocks.

How is the preamble used in Ethernet transmission?

The preamble is a 7-byte field in the Ethernet frame that helps the receiver recognize that it is real data (Ethernet frame) and not random noise in the transmission medium. It acts as a buzzer indicating data entry. This is a 7-byte 10101010 pattern, so the receiver knows that these are not just random bits in the string.

Which is the last byte of the Ethernet preamble?

The last byte or byte of the beginning of the frame is slightly different: 1001011. The 8 bytes of the preamble and the beginning of the frame form a 64-bit pattern. They are not officially considered part of the Ethernet frame. The image starts right after the start of the image, with no gaps.

:diamond_shape_with_a_dot_inside: How many bytes are in the preamble field?

The preamble field is 7 bytes. Contains a string of 7 bytes. Each byte in turn stores 1 and forms the template 10101010. The preamble bytes help the receiving device identify the beginning of the Ethernet frame.

:eight_spoked_asterisk: What does a preamble do on a computer?

The preamble functions as the precursors to the presidential procession. They tell everyone to wake up and be careful: something big is going on. The preamble is not only a preparatory message, it also serves as a clock synchronization device. The bits are represented by high or low electrical voltages.

:eight_spoked_asterisk: What is preamble in ethernet frame

Ethernet framework. In computer networks, an Ethernet frame is a data link layer protocol unit of data and uses the basic transport mechanisms of the physical Ethernet layer.

What is frame in networking?

Frame (network) A frame is a unit of digital data transmission in computer and telecommunications networks. In packet-switched systems, a frame is a separate container for a network packet.

:eight_spoked_asterisk: Why is a minimum Ethernet frame size necessary?

A frame must contain at least 46 bytes of data, even if that means the host must complete the frame before sending it. The reason for this minimum frame size is that the frame must be long enough to detect collisions. More about this below.

How are Ethernet frame sizes defined?

The default Ethernet frame size (defined in RFC 894) is the sum of the Ethernet header (14 bytes), the payload (IP packet, typically 1500 bytes), and the Frame Check Sequence (FCS) field (4 bytes).). The MTU size specifies the maximum number of bytes of data (user data) that can be encapsulated in an Ethernet frame.

:eight_spoked_asterisk: What protocol are in the Ethernet frame?

  • Ethernet II frame, Ethernet version 2 or ■■■ frame are the most commonly used types today as they are often used directly in the Internet protocol.
  • Novell Raw IEEE custom variable structure
  • Structure IEEE Logical Link Control (LLC)
  • Structure of the IEEE Subnet Access Protocol (SNAP)

:eight_spoked_asterisk: What is standard ethernet frame size dimensions

Data sent over an Ethernet network is essentially transferred over an Ethernet frame. What about the size of the Ethernet frame? The Ethernet frame size defined by the original Ethernet standard is 64 to 1518 bytes. The minimum Ethernet size (74 bytes) and the maximum Ethernet size (1522 bytes) will be changed later.

What is the maximum Ethernet II frame size?

An additional 4-byte tag reduces Ethernet II's minimum frame size from 64 to 68 bytes, while Ethernet II's maximum frame size is now increased to 1522 bytes. If you need more information about tag fields, please visit their registration page for more details.

What is standard ethernet frame size comparison

As a reminder, the minimum Ethernet frame size is 64 bytes, including an 18-byte header and a 46-byte payload. It also has a maximum frame size of 1518 bytes, in which case the payload is 1500 bytes. If the message to be sent has a frame size less than the minimum of 64 bytes, the extra bytes are padded.

:eight_spoked_asterisk: What is standard ethernet frame size calculator

Frame size and maximum transmission unit (MTU) size are two important properties of an Ethernet frame. The standard Ethernet (IEEE) frame size is 1518 bytes. The MTU size specifies the maximum number of bytes of data that can be encapsulated in an Ethernet frame.

:diamond_shape_with_a_dot_inside: Ethernet preamble

The Ethernet preamble informs the receiver of the arrival of a data frame. Ethernet is the most widely used set of standards for the physical properties of networks. It also defines how data travels through a network cable and how it travels through a cable. The preamble consists of a series of zeros and ones that precede the arrival of the data.

:eight_spoked_asterisk: What is Ethernet overhead?

Everything. Therefore, Ethernet congestion is a function of the distribution of packets on the network at any given time. Depending on the packet distribution considered, the average packet size on the Internet is 230,260 bytes. The main reason why.

:brown_circle: What kind of data is in an Ethernet frame?

You have already learned that the encapsulated data defined by the network access layer are called Ethernet frames. An Ethernet frame begins with a header that includes the source and destination MAC addresses. The central part of the frame contains the actual data. The frame ends with a field called "Frame Check Sequence" (FCS).

Why does Ethernet frame start with 7 bytes?

INTRODUCTION: The Ethernet frame begins with a 7-byte preamble. It is an interlaced pattern of zeros and ones that marks the beginning of a frame and allows the sender and receiver to establish bit synchronization. The original PRE (preamble) was introduced so that some bits could be lost due to signal delays.

How big of a file can be inserted into an Ethernet frame?

Data - This is where the actual data, also known as user data, is inserted. The IP header and data are inserted here when using Internet Protocol over Ethernet. The maximum amount of data available can be up to 1500 bytes.

:brown_circle: Ethernet frame format preamble

Ethernet Frame Format (IEEE) - PREAMBLE - An Ethernet frame starts with a 7 byte preamble. It is an interlaced pattern of zeros and ones that marks the beginning of a frame and allows the sender and receiver to establish bit synchronization. The original PRE (preamble) was introduced so that some bits could be lost due to signal delays.

Ethernet header length

The standard Ethernet header is 14 bytes in size, with an FCS of 4 bytes at the end of the frame. This results in an Ethernet frame size of 1518 bytes for a 1500 byte IP packet.

:diamond_shape_with_a_dot_inside: How many fields are there in IPv4 header?

IPv4 Header Version Field IP Version Description Reserved 13 Unassigned 4 IP Version 4 5 Transmission IP Datagram Mode (experimental on 6 additional lines .

:eight_spoked_asterisk: What is an IPv4 packet header?

Internet Protocol Version 4 IPv4, short for Internet Protocol Version 4, is the fourth version of the Internet Protocol (IP). IP is responsible for delivering data packets from the source host to the destination host. This delivery is based only on IP addresses in the packet headers. IPv4 is the first major version of IP.

What are IPv4 options?

IPv4 parameters: In fact, there are 3 fields in the IPv4 parameters field: Cc, Parameter Class and Number. The copy section tells them what the package is for: datagram and control information. Administration and debugging information.

What is IPv4 packet format?

The IPv4 packet header consists of 14 fields, 13 of which are required. Field 14 can be called: Parameters. An IPv4 packet header consists of 20 bytes of data. Version: The first field of the IP packet header is a 4-bit version field. The Version field specifies the format of the Internet header.

:brown_circle: What are the different types of Ethernet cables?

The different types of Ethernet cables are classified, the main ones being CAT3, CAT5, CAT5E and CAT6. Styles depend on the desired type of application and range from low quality to extremely high quality.

:brown_circle: What does an Ethernet look like?

There are several Ethernet standards. Today, Ethernet cables look like thick telephone cables. They connect to boxes called hubs or switches. Each cable connects a network card (NIC) to that device. This cable is known as a 10BaseT, 100BaseT or 1000BaseT cable.

:eight_spoked_asterisk: What is Ethernet and how does it work?

Ethernet is a network protocol that controls the transfer of data over a local area network. This is technically called the IEEE protocol. The protocol has evolved and improved over time to transfer data at a rate of one gigabit per second.

What is current Ethernet standard?

The term Ethernet refers to the family of Local Area Network (LAN) products covered by the IEEE standard, which defines what is commonly known as the CSMA/CD protocol. There are currently four data rates defined for fiber and twisted pair use: ● 10BaseT 10Mbps Ethernet.

:diamond_shape_with_a_dot_inside: What information is contained in an IP header?

The IP header is header information at the beginning of an IP packet, containing information about the IP version, source IP, destination IP, times, etc.

What is the IP header contain?

The IP header is the header information at the beginning of an Internet Protocol (IP) packet. An IP packet is the smallest unit of a message that is exchanged over an IP network using the Internet protocol. IP packets consist of an addressing and routing header and a user data payload. The header contains information about the IP version, source IP, destination IP, schedules, etc.

What is a header IP address?

Go to navigation Go to search. The IP header is header information at the beginning of an IP packet that contains information about the IP version, source IP, destination IP, time, etc.

:diamond_shape_with_a_dot_inside: What does the protocol field in the IP header identify?

The protocol field in the IP header is an 8-bit number that identifies the protocol used in the IP packet. TCP and UDP are just two of the possible filtering protocols, although they are the most common. Other protocols such as ICMP and EIGRP have their own protocol numbers as they are not encapsulated in TCP or UDP.

What is the size of an IP header?

The minimum IP header length is 20 bytes or five 32-bit steps. The maximum length of the IP header is 24 bytes or six 32-bit steps.

:brown_circle: What is IPv4 header format?

IPv4, short for Internet Protocol version 4, is one of the most widely used versions of IP. The IPv4 header is an IP datagram header. The IPv4 header format consists of several fields, as shown in the diagram. The IPv4 header contains the necessary information required during transmission.
