How do you drill a lag bolt

To install a lag screw, first you have to align the materials you’re going to screw together. When they’re lined up, clamp them together so they stay in place. Then, using a bit with a slightly smaller diameter than your lag screw, drill a hole all the way through the materials where you want the screw to go.

Can you use a drill to install lag bolts?

You’ll need a drill bit that’s slightly smaller than the diameter of your lag screws. This will ensure the lag bolts threads will have enough material to bind to. Drill through both materials at least as deep as the length of your lag bolts.

What size hole should I drill for a lag bolt?

Similar to wood screws, a stepped pilot hole is recommended for lag bolts. The pilot hole for the body (the unthreaded section of the shank adjacent to the head) should match the bolt size (3/8″ hole for a 3/8″ bolt, for example).

How do you drill a hole in a lag bolt?

Insert a 3/16-inch bit into the drill/driver for softwood. Insert a 7/32-inch bit for hardwood. Insert the bit into the hole and drill through the second piece of wood. If you don’t want to drill out the other side, place a piece of tape on the drill bit to indicate a stopping point 1/4 inch before breaking through.

Should you pre drill lag bolts?

Pilot or lead holes are typically used to ease the installation of large diameter lag bolts. … Full points are not needed for large diameter lag bolts, because pilot holes should be drilled to ensure the heads do not break when torque is applied.

Do lag bolts need anchors?

The short answer is Yes! You can install a Lag Screw into concrete. Installing a lag screw into concrete is not a difficult process but it does require an anchor to install properly. Lag shields are concrete anchors that expand near the bottom to hold the shield inside of a drilled hole.

What size pilot hole should I drill for 1/4 inch lag bolt?

Pilot Hole Size for SoftwoodLag Screw DiameterPilot Hole Size for Hardwood3/32″1/4″3/16″9/64″5/16″7/32″11/64″3/8″1/4″1/4″1/2″11/32″

How much weight will a lag bolt hold?

If a lag screw with a 5/16-inch shaft is installed correctly, it can withstand pull-out, or withdrawal, of up to 212 pounds in close-grain hem, fir and redwood, and up to 266 pounds in larch Douglas fir, according to information from the American Wood Council.

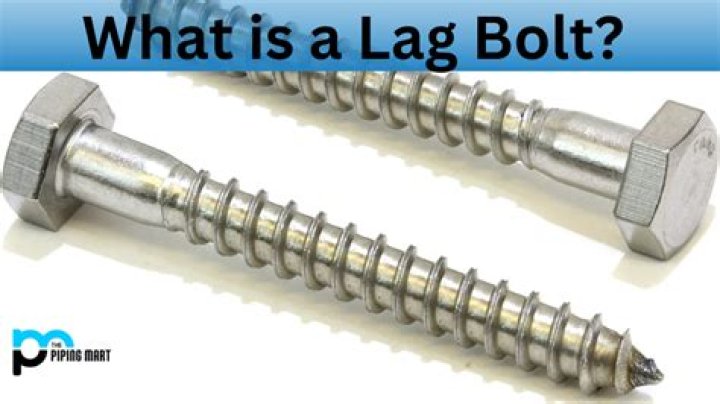

What is the difference between a lag bolt and a lag screw?

Although these terms are used interchangeably, lags should technically be referred to as a screw and not as a bolt. A bolt is a fastener with machine thread that can accept a nut. A bolt is properly assembled and tightened by rotating the nut. … Lag screws are almost always used in wood applications.

What is the purpose of a lag bolt?

Also commonly known as lag bolts, lag screws are some of the toughest fasteners. These extremely sturdy fasteners are usually used to connect heavy lumber or other heavy materials that are bearing an intense load. These screws differ from normal wood, self-drilling or sheet metal screws.

Article first time published on

Should pilot hole be smaller than screw?

As a general rule of thumb, your pilot hole should be slightly smaller than the diameter of your screw. This will remove as much material as possible, which will reduce the likelihood of splitting, but will still leave enough material for the screw’s threads to grip into.

Do I need a pilot hole for wood screws?

Pilot holes are necessary if you’re drilling into hardwood, laminate, or need a precisely located fastener. They’re also recommended if the wood is likely to crack, or if appearance is important. You can skip the pilot holes when doing a rough build with softwood where appearance isn’t important.

Will a lag bolt split a stud?

If a lag screw (not “bolt”) is run in without a pilot hole, the wood (unless it’s very soft) tends to split locally around the screw shank. This may not result in a full split of the lumber, but it effectively reduces the grab of the threads on two opposing sides of the screw.

How deep do you drill a pilot hole?

Drill until your pilot hole is the same depth as the length of your screw or nail. Many experienced do-it-yourselfers can eyeball the depth, but if you aren’t yet that experienced, you can use a drill stop to mark the appropriate depth.

What size lag shield do I need?

SizeMinimum EmbedmentMax. Torque5/16” Long1-3/4″7 ft. lbs.3/8” Long2-1/2″10 ft. lbs.1/2” Long3″20 ft. lbs.5/8” Long3-1/2″30 ft. lbs.

How do you measure a lag bolt?

Length is measured from under the head to the threaded tip of the screw. Head sizes vary with the size of the screw. Since lag screws are externally wrenched, sufficient space around the head must be allowed for wrench clearance.

Are lag bolts self tapping?

Lag screws and metal screws are both types of self-tapping screws. Lag screws are primarily designed to be screwed into wood while metal screws are intended to be screwed into sheet metal.

Are lag bolts stronger than screws?

Structural screws (also called “construction” screws) are stronger than lags and make longer-lasting connections. … The labor difference is so huge that by the time you finish drilling pilot holes and ratcheting in just a few lags, you could have finished the whole job with structural screws and be sipping a cold one.

Will lag screws go through metal?

Lag screws are some of the toughest types of screws out there. Also called lag bolts, lag screws are generally used to connect heavy lumber and other materials that bear an intense load. … They’re required any time you screw through metal, even if you’re attaching the metal to wood.

What size lag bolts for ceiling mount?

Note: Pilot hole must bore into 3 inches of solid wood for lag screw to be fully secured. Install ceiling mounting angle into joist using two 1/4” x 3” lag bolts, two 1/4” washers and a 7/16” socket.

How much weight can a 3/8 eye lag hold?

Shank Diameter (in)Weight Capacity (lbs)1/46005/169003/81,3001/22,500

How much can a screw in a stud hold?

A screw in a stud can hold between 80 and 100 pounds. Be sure to distribute the weight across as many as you can. The easiest way to increase the amount of weight a screw in a stud can hold is to simply double up.

How many lag bolts do you put in a ledger board?

Since 2009, every edition of the IRC (including the anticipated 2021 edition) requires the deck ledger to be connected to the house floor band joist with ½” bolts or lag screws as shown in Table 507.9.

Do 2x4 need pilot holes?

For shop projects and larger construction projects made from 2x4s, I don’t bother drilling pilot holes. You can just drive the screws right into the lumber. … You’ll have even better results with self-tapping screws. For rough construction, you can usually just power screws into place without drilling a hole.

What is self centering drill bit?

Self Centering Bits These self-centering drill bit guides prevent that. The nosepiece bevel centers itself in the hardware’s countersink and retracts as drilling pressure is applied so that the bit drills a perfectly centered pilot hole. … Shelf pin drill guides fit standard shelf pin drilling jigs.
