What does the acronym GFCI stand for

The ground-fault circuit interrupter

What does the acronym GFCI mean?

The acronym GFCI stands for Ground Fault Circuit Interrupt.

What is the difference between a GFCI outlet and a regular outlet?

You can tell standard and GFCI outlets apart simply by looking at them, as their appearance differs. Standard outlets are smaller in size versus GFCI outlets. Standard outlets do not have testing buttons on the outlet face as GFCI outlets do.

Why is it called GFCI?

Before the widespread adoption of GFCI (ground-fault circuit interrupter) outlets, around 800 people died annually in the United States.

What does a GFCI do in order?

A ground fault circuit interrupter (GFCI) can help prevent electrocution. If a person’s body starts to receive a shock, the GFCI senses this and cuts off the power before he/she can get injured. GFCIs are generally installed where electrical circuits may accidentally come into contact with water.

Is an RCD the same as a GFCI?

Plug the RCD into your electricity outlet, plug your appliance into the RCD, and you’re all ready to go. … In the United States, a device like this is more often referred to as a Ground Fault (Circuit) Interrupter (GFI/GFCI), though RCDs and GFIs/GFCIs are not completely equivalent.

How do GFCI outlets work?

GFCI outlets and breakers have a sensor that detects electrical imbalances as low as 4 to 5 milliamps across the hot and neutral wires. When an imbalance occurs, the sensor instantly breaks the circuit rendering the circuit dead. Power can be restored by resetting the tripped outlet or breaker.

What is the major disadvantage associated with GFCI protection?

The disadvantage of GFCI circuit breakers is that after a ground fault has been detected, a GFCI circuit breaker will disable the entire branch circuit. The branch circuit will remain inoperative until someone finds and corrects the fault and then goes to the loadcenter to reset the circuit breaker manually.

What are the 3 types of GFCI?

The three most common types of GFCIs are the outlet, the circuit breaker and the portable one.

Can you replace a GFCI outlet yourself?

After you have removed the old outlet, you can begin replacing it with the new GFCI outlet. Using your needle nosed pliers or wire cutter, make sure the wires are straight and able to be put into the new GFCI outlet. … You only want to be rewiring your GFCI outlet into the line screws.

Article first time published on

Can I replace a regular outlet with a GFCI?

You can replace almost any electrical outlet with a GFCI outlet. Correctly wired GFCIs will also protect other outlets on the same circuit. While it’s common to find GFCI outlets in bathrooms and kitchens, there are GFCI outlet requirements.

Why are GFCI outlets so expensive?

And why are GFCI outlets so expensive relative to regular outlets? GFCI outlets cost around $16 because they’re more complex than a standard outlet. But you can save money by taking advantage of a GFCI’s ability to protect all outlets downstream of it.

Where do GFCI outlets go?

GFCI outlets should be installed in any potentially wet or damp areas such as kitchens, bathrooms, laundry rooms, outdoors, basements, garages and workshops. Damp areas can make you prone to dangerous electric shock but using a GFCI outlet can greatly reduce your risk of injury.

Where are GFCI located?

GFCI outlets have been around since the 1970s and are typically found anywhere around the home that is a damp environment. Commonly they are located (or should be) at bathrooms, kitchen countertops, laundry areas, unfinished basements, crawl spaces, garages and at exterior outlets.

Can you install a GFCI without a ground?

A GFCI without ground wire isn’t ideal, but it’s better than a 2-prong outlet. A GFCI outlet will work without a ground wire and it’s legal. If the outlet shorts out for any reason, it will still trip for safety, even without ground. …

How do I know if my outlet is GFCI?

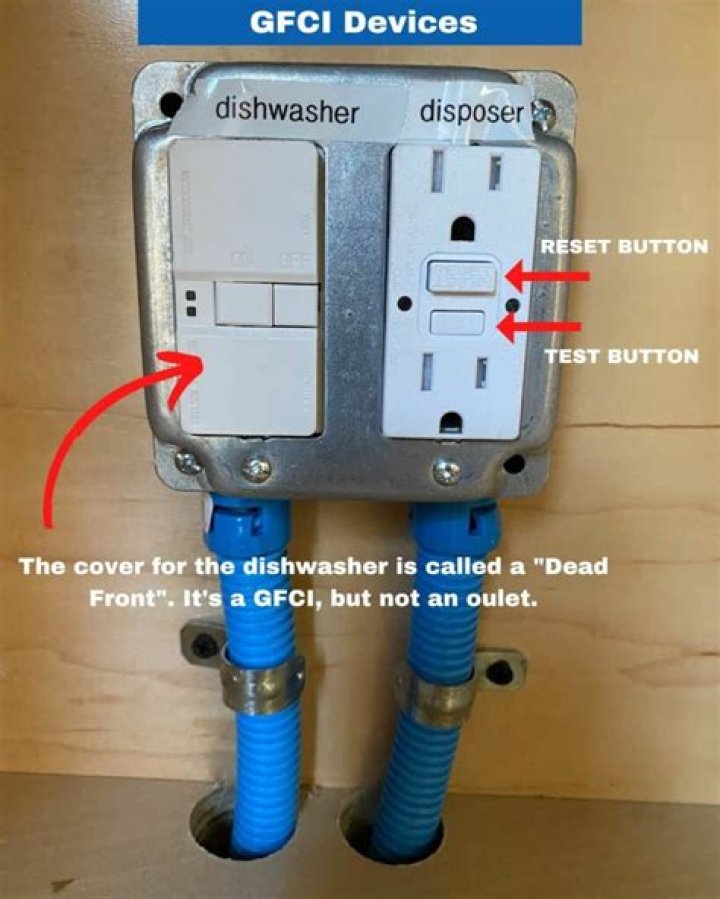

A GFCI receptacle is easily recognizable. Simply look for the test and reset button on the face of the outlet. When installed, any electrical device that is plugged in will be protected in the case of a ground fault. This also includes any electrical outlets that are connected on the same line.

Should all outlets be GFCI?

As a rule of thumb, any outlet within six feet of the sink should be a GFCI outlet. … Any outlets within six feet of this sink (and the dedicated washing machine outlet) should be equipped with GFCI outlets. Outside – All outlets installed outside of your home should be GFCI outlets.

Do GFCI breakers go bad?

The life expectancy of a GFCI outlet is between 15 and 25 years, and a GFCI breaker can last up to 30 years. However, certain conditions may reduce the life expectancy of GFCI outlets and breakers and cause them to break in just 5 or 10 years or even less in some cases.

Does the neutral wire carry a current?

A neutral wire is used to complete the flow of electricity, it acts as a return path for the hot wire current. … During normal operations, the neutral wire will carry current. We can see neutral in most of the electrical equipment, mostly in non-linear loads.

What do electricians call disconnects?

In electrical engineering, a disconnector, disconnect switch or isolator switch is used to ensure that an electrical circuit is completely de-energized for service or maintenance.

Why can't I reset my GFCI outlet?

A GFCI or GFI outlet may not reset because there’s a ground fault occurring at a regular outlet that’s not working, or somewhere else downstream of the GFI. … Chances are, there’s a ground-fault at one or more downstream wires, receptacles, or electrical devices. An incorrectly installed GFI may be problematic too.

What does WR mean on an outlet?

Weather-Resistant Receptacles (WR): All 15- and 20-ampere receptacles installed in damp or wet locations are now required to be approved and marked as weather-resistant (WR).

Is there a difference between GFI and GFCI?

GFCI vs GFI. Ground fault circuit interrupters (GFCI) and ground fault interrupters (GFI) are the exact same device under slightly different names. Though GFCI is more commonly used than GFI, the terms are interchangeable.

What happens if GFCI gets wet?

To turn off a wet GFCI outlet manually, all you have to do is press the reset and the test button at the same time. … Water can result in an interruption that will make the outlet stop working; however, the wires that are connected to the outlet may carry a live electrical current.

Where must GFCI receptacles be installed in residential garages?

GFCI protection is required for 125-volt to 250-volt receptacles supplied by single-phase branch circuits rated 150 volts or less to the ground. GFCI receptacles are required in bathrooms, garages, crawl spaces, basements, laundry rooms and areas where a water source is present.

Does power go to line or load on GFCI?

The “line” wires are the incoming power from the breaker box and the “load” wires are the outgoing power that travels down the circuit to the next outlet.

What does red light on outlet mean?

A red light means that the GFCI outlet needs attention and that there is a potential problem. In this case, simply press the TEST and RESET buttons to reset the GFCI. If the light then turns to green, you are good to go and can use the outlet.

Can you install a GFCI with only 2 wires?

GFCI works fine on a 2-wire circuit, it’s just your typical tester that won’t work. The tester needs a ground to be able to simulate a leak to cause it to trip. It will still trip if there is an actual current leak or if you use the device test button which does not require a ground to work.

Can you replace a two prong outlet with a GFCI?

Upgrade Two-Prong Outlets to GFCI And this is the only type of three-prong outlet you can replace two-prong outlets with without breaking NEC guidelines. This is because GFCI outlets can still protect against electrical shock, even without the grounding component.

How much does it cost to install a GFCI outlet?

The national average materials cost to install a gfci outlet is $19.71 per receptacle, with a range between $17.68 to $21.74. The total price for labor and materials per receptacle is $154.04, coming in between $140.26 to $167.83.

Do all GFCI outlets have a reset button?

It’s easy! All GFCI outlets have a reset button (typically red) in the upper center of the outlet. Find the GFCI outlet near the outlet that tripped. You will be able to tell the problem outlet because the red reset button will have popped out.
