What is acceptable cracking in concrete

A crack in a slab of 1/8 inch or less is typically a normal shrinkage crack and not a cause for concern. If the crack is larger or growing larger (an “active” crack), or one side of the crack is higher than the other, then you may need to have the work reviewed by a structural engineer.

What is considered a hairline crack in concrete?

One definition of a hairline crack is a crack that hasn’t opened up. That means there is very little room to fill it with anything but a very low-viscosity liquid. Since most hairline cracks don’t affect the structural integrity of a countertop, sealing and concealing the crack are the main goals of a repair.

What is considered a structural crack in concrete?

Characteristics of structural cracks Over 1/10 inch wide – Structural cracks are usually wider than 1/10 inch (often wider at one end than the other) and grow larger over time. … Cracks in a ceiling that run across the ceiling and down a wall – These are usually structural cracks.

Is it normal to have cracks in concrete slab?

ANSWER: Every concrete slab has cracks. Even when you don’t see them, slabs are laced with networks of micro-cracks resulting from common shrinkage. When new concrete hardens, shrinkage always occurs. And because concrete is not an elastic material, cracks are inevitable and rarely a cause for concern.

How thick should concrete be to avoid cracking?

To prevent load-stress cracking, make sure a slab is built over a uniformly compacted, well-drained subgrade, and is thick enough to withstand the kind of use it will get. In residential concrete, 4 inches is the minimum thickness for walkways and patios.

What is the most common cause of cracking in concrete?

Shrinkage is a main cause of cracking. As concrete hardens and dries it shrinks. This is due to the evaporation of excess mixing water. The wetter or soupier the concrete mix, the greater the shrinkage will be.

What is considered a small crack?

Although this definition doesn’t give a numerical value for width (or require the viewer to wear bifocals to see the crack), it probably applies to cracks less than about 0.003 inch (0.08 mm) in width. Hairline cracks can be very shallow or quite deep, depending on the cause.

What is a structural crack?

Structural cracks are caused by a variety of issues, like poor soil bearing, overloading, swollen soil, and poor construction sites. Generally, structural cracks are accompanied by interior problems, like sloping floors and doors and windows that stick when closed. Structural cracks usually have some tell-tale signs.

Should I worry about cracks in my concrete floor?

Generally, cracks in your floor are nothing to worry yourself over. The only time that you might be concerned is if the cracks start changing vertically, suggesting that there is some settling happening.

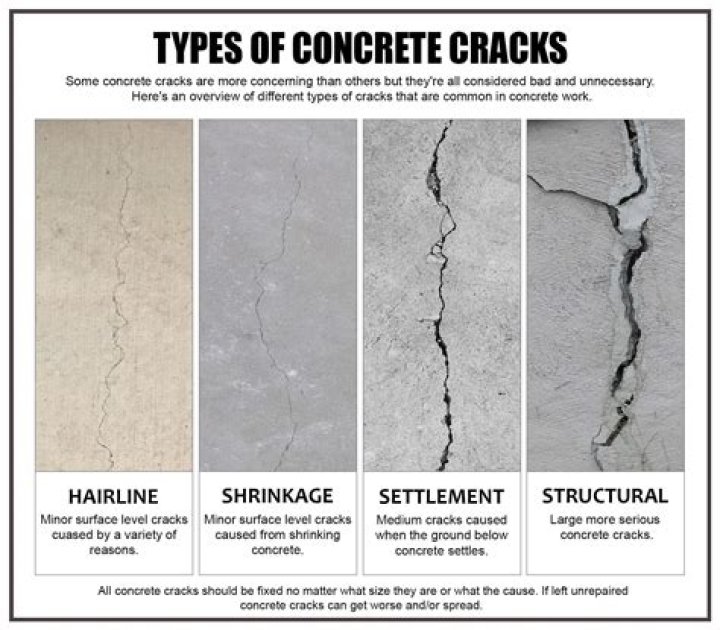

What are the types of cracks?

• Plastic Settlement.
• Plastic Shrinkage.
• Early Thermal Contraction.
• Long-term Drying Shrinkage.
• Crazing.
• Corrosion of Reinforcement.
• Alkali-aggregate Reaction.

Article first time published on

How can you tell if a crack is structural?

1. Stair-step cracks.
2. Cracks on foundation slabs or beams.
3. Vertical cracks that are wide at the bottom or top.
4. Cracks measuring 1/8″ in width.

Are small cracks in foundation normal?

You might get jittery and start asking yourself whether they are harmless or severe. Here’s the thing. Not all foundation cracks are necessarily bad. In fact, most cracks are pretty normal and the good news is, they can be fixed.

What is the typical crack pattern on concrete floors?

Structural cracks in residential foundations usually result from horizontal loading or settlement. Most (but not all) structural cracks resulting from an applied load (hydrostatic pressure or heavy equipment around foundation wall) are nearly horizontal and appear 16″ to 48″ from the top of the wall.

Does higher PSI concrete crack less?

Higher psi concrete will resist cracking more but without addressing the cause of the stress cracks sooner or later the cracks will appear. Addressing cracking in concrete slabs is done long before the mix is poured.

How much weight can a 4 inch concrete slab hold?

Typically we like to limit the weight to about 40 lb/sqft on an unknown 4″ slab. In most cases you can go to 80 lb/sqft in isolated spots, but unless you know roughly what the soil bearing and reinforcing is for that slab you might be looking at cracking.

Can you pour new concrete over old cracked concrete?

You can put new concrete over old concrete. However, unresolved issues with your old concrete, such as cracks or frost heaves, will carry over to your new concrete if not taken care of. In addition, you must pour it at least 2 inches thick.

How wide are hairline cracks?

0 – Hairline cracks: Less than 0.1 mm in width.

Are vertical foundation cracks normal?

Of the foundation cracks you are likely to encounter, vertical cracks are generally the most common and least severe type of crack you will come across. Vertical cracks are cracks that go straight up and down, or maybe on a slight diagonal of within 30 degrees of vertical, and are a common occurrence in many houses.

Do all concrete driveways crack?

In theory, concrete that is formulated correctly for its use and placed on a well compacted, well engineered base, and finished perfectly, should never crack. But that rarely happens. So concrete usually cracks. That fact is the reason concrete contractors put “control” joints in large slabs of the material.

What is non structural cracks in concrete?

Non-Structural Crack – Plastic Shrinkage in Concrete Slab. Cracks in concrete slabs are caused by several variables including shrinkage, environmental effect, inadequate design and overloading from seasonal temperature changes, and sun exposure.

When should I be worried about cracks?

Cracks in your house can vary in length, width and direction. Typically, larger cracks (those bigger than 15mm in width) are a cause for concern and should be inspected by a structural engineer. Subsidence cracks usually appear quite suddenly, rather than slowly over time.

What is non structural cracks?

Non- Structural Cracks: These are the cracks with no regular shape or size and are present in your house’s foundation. These types of cracks do not affect the structural integrity of your home or building. They are fragile cracks (usually less than three millimetres in width).

What are the 2 types of cracking?

Cracking is primarily of two types – thermal cracking and catalytic cracking. Thermal cracking is further categorised into modern thermal cracking and steam cracking. On the other hand, sub-classifications of catalytic methods of cracking are hydrocracking and fluid catalytic cracking. 3.

What is an example of cracking?

Cracking, as the name suggests, is a process in which large hydrocarbon molecules are broken down into smaller and more useful ones, for example: The cracking products, such as ethene, propene, buta-1,3-diene and C4 alkenes, are used to make many important chemicals.

Can a house settle after 20 years?

Every house will see some settlement over the years. In fact, a few inches of settlement is nothing to worry about (assuming this settlement is evenly distributed across the structure). Soil expansion and contraction cannot be controlled and quality construction will hold up under normal variances.

What is foundation crack?

Foundations crack for many reasons including unstable soils, poor drainage and settling. Cracks may indicate serious structural problems and others may be insignificant. … This soil movement is just one of a number of reasons that foundations crack or fail.

What is considered a bad foundation crack?

While you’re under your house in a basement or crawlspace, you’re looking for any cracks or signs of damage. If you find long horizontal cracks, leaning, or bowing walls, you are in dangerous territory. If the foundation walls are made of concrete block, the cracks may look like stair-steps.

What is a diagonal crack?

Diagonal cracking is an inclined crack beginning at the tension surface of a concrete member. … Concrete walls tend to display vertical cracks but settlement or frost heaving at a corner of a concrete wall can produce diagonal cracks or breaks in that location.

Is a crack in a slab foundation bad?

You can expect shrinkage and cracks in the slab foundation and these are very common. They usually do not compromise the structural integrity of the home. … Here, a foundation should be created to maintain structural integrity but cracks are normal.

Is 5000 psi concrete good for driveway?

The typical concrete strength used for a driveway is in the 3000 psi to 4000 psi range, although temperate areas of the country may use lower strengths. Contractors, when ordering ready mixed concrete, should advise the producer of the intended use for the concrete.

What PSI is good for concrete?

The ideal concrete psi for a given project depends on various factors, but the bare minimum for any project usually starts around 2,500 to 3,000 psi. Each concrete structure has a normally acceptable psi range. Concrete footings and slabs on grade typically require a concrete of 3,500 to 4,000 psi.
