What is ADA grab bar height

The requirements for ADA grab bar height state that all grab bars shall be installed horizontally 33-36 inches above the finished floor as measured to the top of the bar (not the centerline).

What is code for handicap grab bars?

Both types of bars have to be between 33 and 36 inches above the finished floor. Side wall grab bars should be at least 42 inches in length, with one end 12 inches or less away from the wall behind the toilet, and one end at least 54 inches away from that wall. Rear wall grab bars must be at least 36 inches long.

Why is there a grab bar behind the toilet?

Grab bars next to a toilet help people using a wheelchair transfer to the toilet seat and back to the wheelchair. They also assist people who have difficulty sitting down, have balance problems while seated or need help rising from a seated position.

Does ADA require vertical grab bars?

The ADA Standards require horizontal grab bars on the rear wall and side wall of the water closet, but it does not specify a vertical grab bar. However, you will often see them while in a toilet room or in the accessible stall. The vertical grab bar is only specified in the ICC/ANSI A117.

How high should a grab bar be next to a toilet?

The ADA says that grab bars should be installed horizontally between 33 inches and 36 inches maximum above the finished floor to the top of the gripping surface (section 609.4). This is likely due to average height and common usage.

How big does an ADA bathroom have to be?

ADA Bathroom Dimensions In general, minimum accessible bathroom size is 60 inches wide by 56 inches deep plus clearance space for fixtures. Adding more fixtures or door swings will demand more space and a larger bathroom. ADA standards do not specify an exact room size.

Do ADA bathroom doors swing in or out?

Current ADA Guidelines Current guidelines for bathrooms, published in 2010, allow the bathroom door to swing inward “as long as there is a clear floor space” beyond the door swing, when open.

What is a handicapped toilet?

An ADA toilet, also known as disabled toilets, handicap toilets and/or comfort height toilets, are designed to address the inconvenience bought by disabilities by providing more space and hand bars. Generally speaking, an ADA toilet is one that is compliant with the requirements of the American Disabilities Act.

What is the difference between a grab bar and an assist bar?

A grab bar is always mounted to a wall, not a glass shower door. Grab bars, also known as assist bars, are installed to help an individual easily and safely exit or enter a shower or bathtub. …

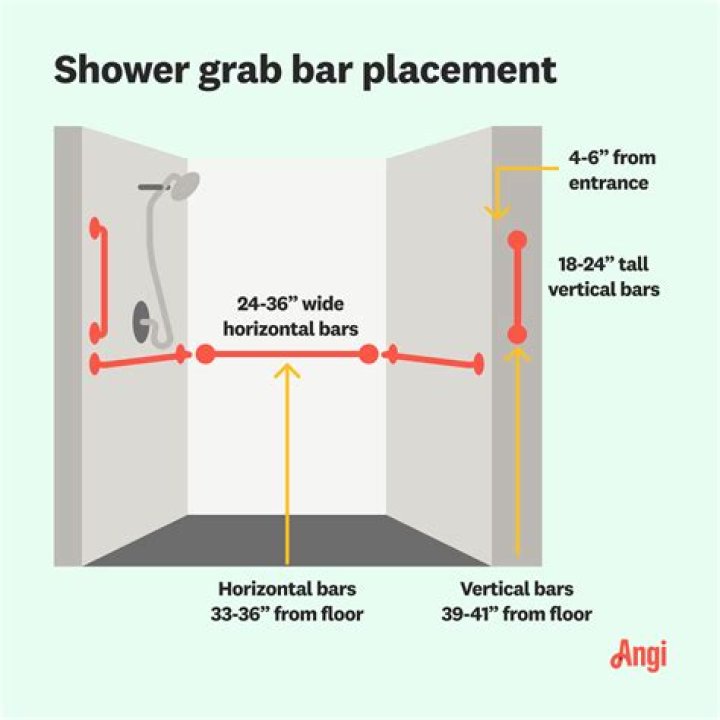

How many grab bars are needed in a shower?

There should be a minimum of 3 grab bars in a standard shower stall. They should be position in the following spots: On the wall at the entrance to the shower stall. This is normally a small grab bar positioned vertically.

Article first time published on

What's the height of a handicap sink?

ADA guidelines state that accessible sinks shouldn’t be mounted higher than 34 inches above the floor for adults. For children, the sink should be set at 29 inches maximum above the finished floor. Both these heights are dependent on the individual using the sink and are truly a set of guidelines.

Do you need two ADA bathrooms?

The ADA requires at least one ADA-compliant restroom for each gender. Therefore, if your floor space is no more than 2,500 square feet, both restrooms will need to be compliant with the ADA. If instead, your facility has a cluster of single-use restrooms, at least half of them must be ADA-compliant.

Does a private bathroom need to be ADA-compliant?

There is a misconception that a private bathroom is exempted from having to comply with the 2010 ADA Guidelines and the 2012 TAS. In reality, even private bathrooms must comply, although there are some exceptions they can take.

Does an ADA bathroom require a sink?

At least one sink in each ADA compliant bathroom must meet these minimum requirements. … The sink must also be installed so that the highest point (either the front rim or the countertop) is a maximum of 34 inches above the finished floor.

Can ADA bathroom door swing out?

The bathroom doors can open both to the outside or inside. It is the same for ADA bathrooms, as well. … According to the 2010 law, ADA bathroom doors need to be at least 32 inches (81 cm) wide, while the swing of the door can interfere with the clear maneuvering area about 12 inches (30 cm) max.

Can a grab bar be used as a towel bar?

Grab bars, when properly installed, can handle several hundred pounds without breaking or ripping out of the wall. … Designer grab bars allow you to get the same look and style as towel bars, but with the functionality and safety they are designed for.

Where should grab bars be placed in a tub?

Grab bars can be installed on the back wall and control wall of the shower stall. The ADA recommends that two bars be installed on the back wall, one 8 to 10 inches from the rim of the tub and the other parallel to it 33 to 36 inches from the base of the tub.

How high are ADA compliant toilets?

The standard ADA (Americans with Disabilities Act) height toilets must have, a 17”-19” floor to bowl rim height, including the seat. You should also consider the toilet rough-in from the wall, which is commonly 12”. Other rough-in dimensions in older homes can be 10” or 14”.

Are ADA toilets higher?

A comfort height toilet is sometimes known as an Americans with Disabilities Act (ADA) toilet because the height matches that used for ADA-compliant toilets, 17 to 19 inches from floor to seat. This is like the height of a chair. The height of a standard toilet is about 15 inches from floor to seat.

What is a ADA compliant bathroom?

What is an ADA compliant restroom? The main requirement for an ADA compliant bathroom is accessibility for those who might encounter difficulty moving around. The Americans with Disabilities Act is a civil rights law that protects the equal rights of persons with disability to accessible features.

What is the ADA compliant sink depth?

Specific to kitchen sinks, under the ADA requirements, the sink should be 5 inches to 5 ½ inches deep to allow space for a wheelchair to go underneath and to not be so deep as to make it difficult for a seated person to reach to the bottom of the sink.

What is the smallest ADA restroom?

With a shower, the smallest ADA bathroom could be about 54 square feet. Without a shower, the bathroom can shrink to 37.5 square feet.

What are ADA requirements for toilets?

The toilet should be installed with the top of the seat between 17” and 19” above the floor and located between 16” and 18” from the side wall to the center line, unless it is regarded as an ambulatory accessible toilet compartment that must be between 17” to 19” from the side wall.

Is a pocket door ADA compliant?

According to the accessibility standards, the hardware has to be exposed and usable from both sides when the door is fully open. … Flush pulls and edge pulls are not considered usable for someone with a disability, so surface-mounted door pulls must be used.

How far should an ADA toilet be from the wall?

The center line of the toilet must be between 16 and 18 inches from the side wall. A clear circle of at least 60 inches around the side wall and 56 inches from the rear wall to allow a wheelchair to turn (the door cannot swing into the minimum required area for wheelchair-accessible toilet compartments).

Should disabled toilets have lids?

There should be no lid on the WC seat. This will interfere with the use of the back pad. … The toilet paper, wash basin, soap dispenser and towel/hand drier should be within easy reach of a user sitting on the toilet. The wash basin should have a lever-operated mixer tap on the side closer to the WC.
