What is the diameter of a toilet flange

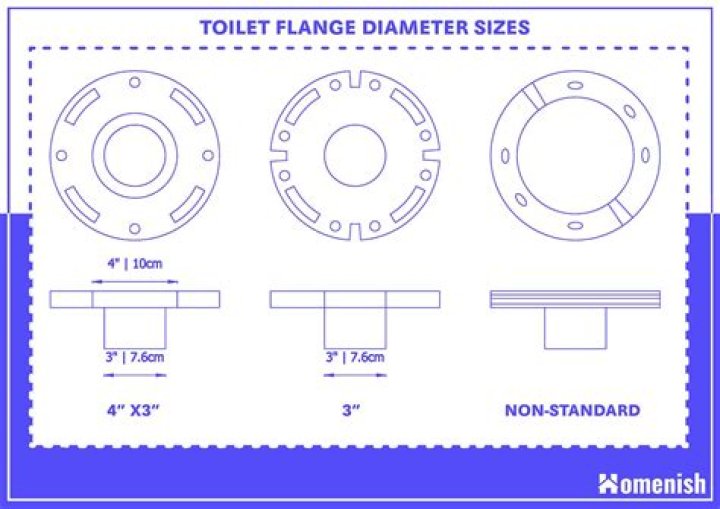

The diameter of the toilet flange will be either 3 or 4 inches, which is the diameter of the flange hole, not the diameter of the flange’s outside perimeter. When you visit a plumbing website or a home improvement, hardware or plumbing store, the flanges will be in either one of these two diameters.

What is the standard toilet flange size?

The standard flange size is 3 inches in diameter. The standard plumbing hole for a toilet is the flange, the waste pipe that fits through a hole in the floor. Comprised of two parts — a pipe and a ring bolted to the floor — the flange will connect the toilet to the household’s waste line.

How do I know what type of toilet flange I need?

A 4″ x 3″ toilet flange has a four-inch topside and a three-inch bottom diameter. The bottom of this size flange will fit standard-sized drain pipes. In addition, a 4″ x 3″ toilet flange is the size of most closet bend pipes. If you are not certain about your toilet pipe size, this flange would be appropriate to use.

How do you measure for a toilet flange?

The Distance To Set The Toilet Flange From The Back Wall. You’ll want to set the center of the water closet flange 12 inches from the finished back wall. Don’t measure from the base molding! Take this measurement from the finished wall.

What size pipe connects to a toilet flange?

Typically, 3-inch pipes carry the water to the toilet, but a 4-inch pipe may be used to move wastewater out of a house to a sewer or septic tank. The drain pipe connects to the flange, which mounts the toilet itself, and this flange is usually built to connect to 3-inch, schedule 40 toilet drain pipe.

What size hole do I drill for toilet flange?

Standard Size The ring has slots for the bolts that hold the toilet down. The flange pipe can have a diameter of either 3 or 4 inches, depending on the size of the waste line, but a 4-inch hole works in both cases. Plumbers cut it with a hole saw or a reciprocating saw.

Does toilet flange go inside or outside pipe?

Install a toilet flange on the outside. This can be done with a hammer and chisel. If the flange is cast iron with a rubber gasket, you should be able to remove the cast iron with a hammer and chisel, remove the rubber gasket with a sharp knife, then replace the gasket and the flange.

How thick is a toilet flange?

If it’s at the same level, or no more than 1/4 inch below it, a regular wax ring, which is between 3/4 and 1 inch thick, is all you need. If the flange is recessed deeper than that, you need an extra-thick wax ring, which is about an inch thicker than a regular one.

Does toilet flange sit on top of tile?

5 Answers. The toilet flange needs to be on top of the finished floor. Meaning the bottom edge of the flange needs to be on the same plane as the toilet. So if your toilet sits on the tile, the flange needs to be on top of the tile too.

Is 3-inch pipe OK for toilet?

In new construction, 4-inch drains can be installed from every toilet, or you can run a 3-inch drain line from a toilet to the home’s main 4-inch drain pipe — the line running from the house to the sewer or septic system. Older homes may have only 3-inch drains, so that’s what you have to work with.

Article first time published on

How do you measure the diameter of a pipe?

To find it, measure around the circumference of the pipe with flexible measuring tape. Divide the circumference by pi, or about 3.14159. For example, if the circumference is 12.57 inches (319 mm), you would divide by pi, and get an outside diameter of about 4 inches (100 mm).

Does a toilet flange need to be screwed to the floor?

The flange should be fastened to the floor. Dry fit the toilet to make sure it doesn’t rock. If it does rock, use shims to prevent rocking – just tightening the bolts probably will not stop the rocking but will risk cracking the toilet or breaking the flange.

Can you put a new toilet flange over an old one?

Either slide the new closet flange bolts into the old flange before adding the extender or add them after you adhere the extender to the old flange. Consequently, we chose to add one of the bolts to the old flange first since it was a tight fit. Add metal washers and nuts to the closet flange bolts.

How do you measure toilet clearance?

Measure from the wall behind the toilet to the center of one of the closet bolts (which hold the toilet down). If the toilet has four closet bolts, measure to the center of one of the rear ones. Then measure from the center of the mounting holes to the back of the new toilet you’re considering.

Where do you drill a toilet flange?

1. Measure the position of the center of the flange from the back and side walls and make a mark with a pencil. …
2. Place the flange pipe on the floor and center it over the mark. …
3. Put a 3/4-inch drill bit into a power drill and place the tip of the bit about 1/4 inch inside the line.

How much does a plumber charge to replace a toilet flange?

The cost for a plumber to replace the toilet flange varies by region and service provider, but the average price range is approximately $130 to $310.

Does toilet flange need to be glued?

pvc flange should be glued into a pvc pipe. IT would have been less of a problem if a plumber had made the replacement. Use a “good” flange and you will not have to do it again. Caulk is NOT glue.

Should I caulk around the toilet?

Caulk helps to keep the toilet secured to the floor. The bolts are really supposed to keep the toilet secure, but caulk helps. … Some people prefer to caulk all around the toilet and leave about a one-inch gap in the caulk at the back of the toilet to allow water to escape out in the event of a leak.

Can a toilet flange be too high?

When your toilet flange is too high, your toilet may leak water and rock back and forth when used. Both the leaking and the rocking can warp or break the floor. A leaking flange can also rot the subfloor and lead to the accumulation of mildew and mold.

Can toilet flange be lower than floor?

In a typical toilet installation, the floor flange that sits inside the drain opening below the toilet should be positioned so that its bottom surface rests flush against the finished floor or no more than 1/4 inch above or below the floor.

How high does a toilet flange need to be above finished floor?

The optimum flange height to aim for is 1/4 inch above the finished floor. This typically allows for almost any type of wax ring to be used and still ensure a good seal. If you recently tiled or changed the bathroom flooring, the flange height is likely less than optimal.

Should I use a wax ring with a flange?

The wax ring with a sleeve often called a deep seal bowl wax, is a very reliable seal for a toilet although it can be messy. … If you have a normal height closet flange then you can use the regular wax ring with a sleeve. If your flange is floor level or slightly below then you can use an extra-thick wax ring.

What is a PVC flange?

Sch 80 PVC Flanges Flanges are fittings that connect to pipes to allow the attachment of accessories and other items, stop the flow or increase the strength of the pipe. These discs create a tight seal when pressing two surfaces together using bolts, clamps, edges or a compressive force.

Can a toilet drain into a 2 inch pipe?

If it is an outlet size (from base of toilet to a Sewer Line, you need to replace all of the 2 inch line with the size of the toilet discharge (usually 3 inches). A 2 inch outlet on a toilet will clog the first time you use it. It is too small. You cannot.

What is code for toilet drain size?

Regardless of your plumbing code, the minimum drain size for a toilet is 3 inches. Water closet’s flushing 1.6 gallons (or less) are rated at 3 DFUs (drainage fixture units).

Can a toilet and shower share the same drain?

In the US, with modern regulations, in most municipalities, yes, they do. The water and solids from your toilet waste line and the water from your drains end up in the same sewer line, if you have access to a municipal sewer system.

What is a flange cover?

Flange covers or flange protectors as they are commonly known, are designed to provide all round protection to flanges where damage during transport, manufacturing treatments and exposure to corrosive elements is a concern.

What is a toilet ring?

Your toilet’s wax ring creates an airtight seal to prevent water and sewer gas from escaping. When the thick wax ring goes bad, you need to replace it right away to prevent leaks.

Is pipe diameter inside or outside?

OD and Nominal Pipe Size Tubing is measured by the OUTSIDE DIAMETER (O.D.), specified in inches (e.g., 1.250) or fraction of an inch (eg. 1-1/4″). Pipe is usually measured by NOMINAL PIPE SIZE (NPS). Although it is related to the outside diameter, it is significantly different.

How do you find the diameter of a pipe from the circumference?

Measure circumference using a flexible tape and divide the outside circumference by 3.1415. Here the circumference is about 1/32″ (0.03″) less than 6″ = 5.97″. So 5.97 ÷ 3.1415 = 1.900″ diameter – 1 1/2″ nominal pipe.
