What is the friction loss in 5 inch fire hose
For example, five-inch hose can flow the equivalent of three three-inch hoselines at about the same friction loss. Five-inch LDH can deliver 1,000 gpm at about six psi per 100 feet or 1,500 gpm at 15 psi (friction loss).
How much friction do you lose in a fire hose?
Using the hand method, for each 100-foot length of 1¾-inch hose flowing 200 gpm, the friction loss is 48 psi: 2 x 4 x 6 = 48 psi. For a 3-inch supply line flowing 300 gpm, the friction loss per 100-foot section would be 9 psi: 3 squared equals 9 psi.
How many GPM can a 5 inch hose flow?
About 5-Inch Hose 5-inch hose is capable of flowing up to 2000-gpm, almost 300% more than a single 3-inch hose.
What is the coefficient of 5 inch hose?
Coefficient TableDiameterCoefficient4 inch0.24 ½ inch0.15 inch0.08What is the friction loss formula?
Consider the equation: FL = c × (gpm/100)2 × L/100. The “c” term is the so-called friction loss factor and measures the pressure loss per 100 feet. This is multiplied by the square of the volume flow (gpm) and hose length (L) to get total friction loss.

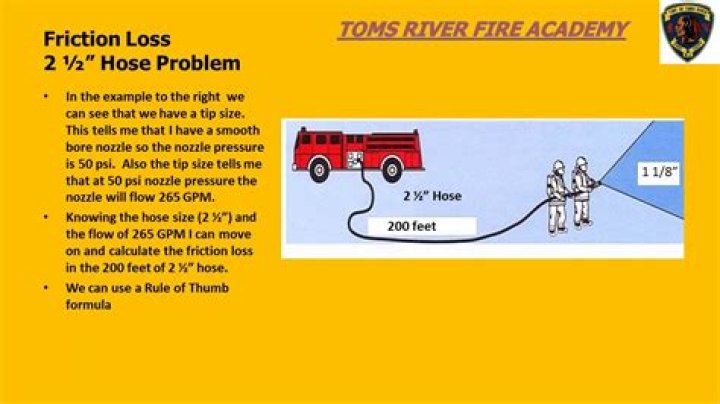

What is the friction loss for 2.5 inch fire hose?
A 200 foot length of 2.5 inch hose flowing 300 GPM has 36 PSI friction loss.
How do you calculate friction loss on a hose?
In mechanical systems such as internal combustion engines, the term refers to the power lost by overcoming friction between two moving surfaces. friction loss = friction loss coefficient * ( flow rate / 100) 2 * hose length /100. FL = C* (Q/100)2 *L/100.
How do you calculate gpm on a fire hose?
What is the formula for gpm? For example, a one-inch smooth bore tip will have a discharge of 210 gpm: 29.72 × 12 × 7.07 = 210 gpm.What is the GPM formula?
The formula to find GPM is 60 divided by the seconds it takes to fill a one gallon container (60 / seconds = GPM). Example: The one gallon container fills in 5 seconds. 60 / 5 = 12 GPM. (60 divided by 5 equals 12 gallons per minute.)
What size hose do firefighters use?There are three standard-sized hoselines that the fire service uses as a front line attack line: 1½, 1¾ and 2½ inch. The remaining situations might involve large master streams or deck guns. The key with selecting the correct size line is quite simply getting the right amount of water on the fire.
Article first time published onWhich is an example of a hose friction point?
A pump lays hose from a water source to the fire scene in a __________ lay. Which is an example of a hose friction point? … pressurized water source.
What is LDH hose?
LDH fire hose is big-flow, low-pressure hose, which is both its defining feature and the reason for its popularity. … This type of hose can then deliver a greater water volume over greater distances, with less friction loss than smaller diameter hose.
How do you calculate pressure loss on a hose?
Pressure loss for 100′ of hose is 20 psi, therefore, the loss in 150′ of hose is: 150’/100′ x 20 psi = 30 psi. As a rule of thumb, loss for each set of couplings equals 5% of the loss per 100′ of hose. Therefore, pressure loss = . 05 x 20 psi = 1 psi per set of couplings.
How much psi do you lose per foot of hose?
Hose Friction Pressure Loss (Pressure Drop in PSI per 100FT of Hose with Typical Water Flow Rates)WATER FLOW GPMHose Inside Diameters, Inches154202180603380120
What is friction loss measured in?
The friction loss is customarily given as pressure loss for a given duct length, Δp / L, in units of (US) inches of water for 100 feet or (SI) kg / m2 / s2.
How do I calculate friction?
- Choose the normal force acting between the object and the ground. Let’s assume a normal force of 250 N .
- Determine the friction coefficient. …
- Multiply these values by each other: (250 N) * 0.13 = 32.5 N .
- You just found the force of friction!
How much friction Do appliances lose?
In situations where total gpm is less than 350 gpm, the friction loss is insignificant. If total gpm is greater than 350 gpm, add 10 psi for friction loss in the appliance. Master stream appliances flowing at rated capacity use 25 psi per appliance.
What is the friction loss on 1 3 4 fire hose?
The friction loss in a 100-foot section of 1 3/4-inch line flowing 150 gpm is 27 psi.
What is the friction loss in the 100 ft hose line?
Friction loss = 8 psi per 100 feet of hose. Total friction loss = 8 × 3 = 24 psi.
How much water can flow through a 2.5 inch fire hose?
How many gallons per minute of water does a fire hose expel? – Quora. depends on size of hose and pump pressure. Typical Flows for hand lines – 1 inch hose 30–60 gpm; 1.5 inch hose 125 gpm; 1.75 inch hose 200 gpm; 2.5 inch hose 250–300 gpm.
What is one of the four factors that determine friction loss?
The amount of friction loss depends on the volume of water moving through the hose, the hose size (diameter) and length, and the internal roughness of the hose. Head (the pressure increase or decrease as a result of a change in elevation) does not affect friction loss.
How is PDP calculated?
- PDP = NP + FL.
- Nozzle Pressure [NP]
- FL = C Q.
How do you calculate fire flow?
Fire flow = length X width ÷ 3 This formula is most easily applied if the estimated square footage of the entire structure is used to determine an approximate fire flow for the total structure and is then reduced accordingly for various percentages of fire involvement.
How do you convert Btu hr to GPM?
The formula is Btu/hr. = GPM x Δt x 500.
How do you convert BTU to GPM?
BTU = Flow Rate In GPM (of water) x (Temperature Leaving Process – Temperature Entering Process) x 500.4*Formula changes with fluids others than straight water.
What size hose does FDNY use?
Response: FDNY uses 134-inch hose as its primary attack line in most situations. This size hose was introduced in the early 1970s and rapidly became the workhorse for structure fire operations.
What is the best size fire hydrant supply line?
Whenever possible, the use of LDH is recommended, particularly when large fire flows will be needed or when water must be transported a great distance. The most commonly used LDH is the 5-inch hoseline. When charged, a single 5-inch line contains approximately 100 gallons per 100 feet of hoseline.
What is the diameter of the fire hose nozzle?
MaterialAluminium, Brass, PlasticSize1/2 inch, 3/4 inch, 1/2 – 1 inchNozzle Diameter5-6 inch
What is friction loss in pipes?
Friction loss is a measure of the amount of energy your piping system loses because your fluids are meeting resistance. As fluid flows through your pipes, it carries energy with it. Unfortunately, whenever there’s resistance to flow rate, it diverts fluids and energy escapes.
What does 100 feet of 5 hose weigh?
On average, a 100-foot section of 5-inch hose empty weighs 110 pounds. With water weighing 8.33 pounds per gallon, a 100-foot section of LDH filled with water will weigh approximately 944 pounds.
How heavy is a firefighter's gear?
A firefighter’s gear can weigh up-to 75 pounds. The basic gear includes a helmet, hood, pants, coat, gloves, and oxygen tank. Depending on what the situation dictates, more equipment may be necessary.
