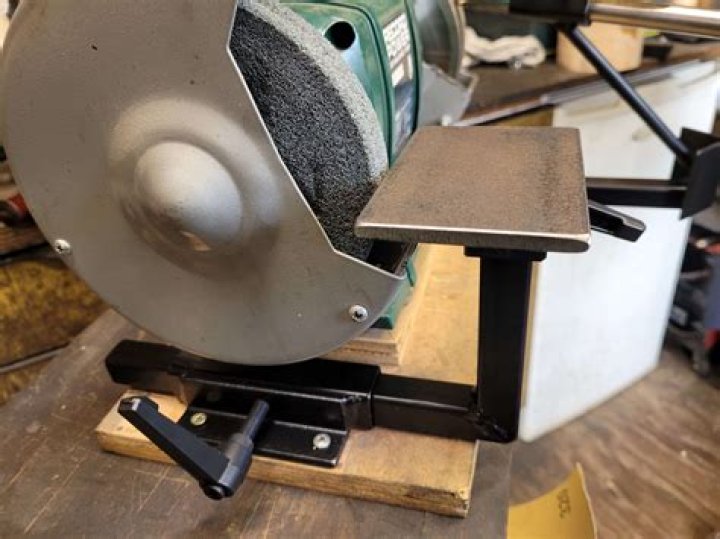

What should the tool rest gap be on a pedestal grinder

Next, make certain the lower work rest, also known as a tool rest, is installed when using an abrasive wheel, and that it is adjusted so the gap between the face of the grinding wheel and tool rest is not more than one-eighth of an inch (refer trainees to the handout accompanying this toolbox talk).

How close should a tool rest be on a grinder?

Keep the tool rest as close to the grinding wheel as possible without touching it. The tool rest must be minimally within  of an inch of the grinding wheel. If a magnetic chuck is being used on the surface grinder, make sure it is holding the work securely before starting to grind.

What is the safe distance between the grinding wheel and wheel rest?

OSHA regulations state that the gap between grinding wheel and tool rest be no greater than 1/8 inch (3 mm), less is better. The rule applied to both pedestal and bench grinders.

What is the maximum safe clearance of a tool rest on a pedestal grinder?

Adjustable work rests must also be installed and adjusted to maintain a maximum clearance of 1⁄8-inch between it and the wheel. Tongue guard exceeds 1/4-inch from grinder wheel. Tongue guard is missing on this grinder. No tongue guard and the work rest exceeds 1/8-inch from grinder wheel.

How far should the tool rest be set from the grinding wheel when grinding?

Always keep the tool rest the correct distance from the wheel, usually 1/16th of an inch (1.5 mm). As the wheel is ground down the tool rest needs to be reset. Be especially careful when grinding edges, corners, ragged joins and so on.

What is the maximum distance allowed between a tool rest and abrasive wheels?

Work rests shall be kept adjusted closely to the wheel with a maximum opening of one-eighth inch to prevent the work from being jammed between the wheel and the rest, which may cause wheel breakage.

How close should a tool rest and spark breaker be set to the wheel on pedestal grinder?

The tool rest and spark breaker should be set at a maximum 1/16″ from face of grinding wheel.

Why do you stand to one side of the pedestal grinder during start up?

let the tool do the work! The correct grinding surface on the wheel that should exclusively be used. Stand to one side of the grinding wheel especially when starting the grinder and until it reaches full operating speed to avoid this. A defective grinding wheel is most likely to disintegrate as it gets up to speed.

Should you wear gloves when using a bench grinder?

Gloves should be worn only if using a tool grip of adequate length to keep hands several inches from the face of the stone. Do not wear gloves while holding small pieces or using a wire wheel. Keep long hair tied up, and do not wear loose clothing or loose jewelry when operating a grinder.

When fitting a new grinding wheel to a pedestal or bench grinder What should the RPM of the grinding wheel be?

Unless they’re variable speed, most bench grinders run at about 3,450 rpm. If you’re careful and keep the wheel dressed (more on that in another tip), these high-speed grinders work fine. But for sharpening, a low-speed grinder running at 1,750 rpm is a better choice.

Article first time published on

Which of the below are safe operating instructions during the use of a pedestal grinder?

Only use the face of the wheel for grinding operations, not the side. Move the work back and forth across the face of the wheel to prevent grooves from forming on the grinding wheel. Do not walk away from a grinder that is still in motion.

What is the maximum distance that a work rest should be from the wheel face?

OSHA specifies that work-rests be kept adjusted to within 1/8-inch of the wheel to prevent the workpiece from being jammed between the wheel and the rest, resulting in potential wheel breakage.

What is the use of tool rest in grinding machine?

Tool rest and spark arrester placement The tool rest needs to be tight and within 2 to 3 mm of the wheel (1⁄16″ to 1⁄8″). This prevents the workpiece from slipping down between the wheel and the tool rest. The spark arrestors catch stray sparks. Grinding is usually done with the workpiece resting on the tool rest.

When grinding the operator should not stand?

Do not stand in direct line with the grinding wheel when using the grinder. Stand to the side so that if a piece of the grinder wheel is thrown off it will not hit you. 5.

How does a pedestal grinder work?

Pedestal grinders are used to sharpen high-speed steel cutting tools used on the lathes and milling machines, debur, or used to remove surface imperfections and to work extremely hard materials. The grinding wheels are held between two flanged disks.

What test should be performed on abrasive wheels?

What is an Abrasive Wheel ring test? Grinding wheels must be inspected and “ring-tested” before they are mounted to ensure that they are free from cracks or other defects. Wheels are tapped gently with a light, nonmetallic instrument. A stable and undamaged wheel will give a clear metallic tone or “ring.”

What is the OSHA standard for bench grinders?

Floor and bench-mounted grinders shall be provided with work rests which are rigidly supported and readily adjustable. Such work rests shall be kept at a distance not to exceed one-eighth inch from the surface of the wheel.

What material should never be ground on a bench grinding wheel?

Do not grind/sand wood, plastic, or any other non-metallic materials. Don’t use this wheel if you have not reviewed all of the safety materials and have not been properly trained in the use of the tool and wheel.

How much of a gap should there be between the work rest and the face of the grinding wheel?

Next, make certain the lower work rest, also known as a tool rest, is installed when using an abrasive wheel, and that it is adjusted so the gap between the face of the grinding wheel and tool rest is not more than one-eighth of an inch (refer trainees to the handout accompanying this toolbox talk).

Are 9 inch grinders banned in Australia?

Note: 9 inch (230 mm) angle grinders have been banned on some work sites due to the increased risk of injury. The increased power and size of the unit will cause more severe kickback and gyroscopic effects (i.e. makes the grinder difficult to manoeuvre).

Which way should a bench grinder spin?

On the Work Sharp machine, the disc rotates counterclockwise, and you’re supposed to put the tool to the disc in such a way that it rotates away from you.

Which part of the pedestal grinder support the work while grinding?

Note: Support the work on the tool rest to steady it when grinding, except in the case of the small tool bits which can be guided better by supporting them with the fingers or with a hand resting on the tool rest.

What precautions should you take prior to starting a pedestal grinder?

PRE-OPERATIONAL SAFETY CHECKS Ensure that the wheels do not touch the work rest. Ensure the gap between wheel and rest is no more than 1.5mm. Check that the wheels are running true and are not glazed or loaded. Check for cracks in the wheel and report any you find.

Why is it important to stand aside to allow the grind wheel to run up to full speed before using it?

In short, never over-speed a grinding wheel. The speed of the grinder must be compared to the speed marked on the wheel or package to make sure the machine’s speed is at or below the maximum operating speed of the wheel. Surpassing this rating risks not just wheel breakage but also the safety of shop personnel.

What should you do before mounting an abrasive wheel?

Grinding wheels must be inspected and “ring-tested” before they are mounted to ensure that they are free from cracks or other defects. Wheels should be tapped gently with a light, nonmetallic instrument.

How much gap is maintained between the grinding wheel and the work based on a pedestal grinder?

The gap is usually maintained to be approximately 0.1mm to 0.3 mm. During the grinding operation one side of the wheel takes part in the grinding operation whereas the other side of the wheel is being dressed by electrochemical reaction.

What is pedestal safety?

₹ 808 Get Latest Price. Product Video. Brand. Ecoline.

What abrasive tool is used to dress a grinding wheel?

A grinding dresser or wheel dresser is a tool to dress (slightly trim) the surface of a grinding wheel.

What is to be done after dressing the grinding wheel to run?

Dressing removes the clogs on the surface of the wheel and the blunt grains of the abrasive, exposing the new sharp abrasive grains of the wheel which can be cut and brought to shape efficiently. TruingTruing refers to the shaping of the wheel to make it run concentric with the axis.

What is the maximum gap for a pedestal grinder?

The grinder tool rest gap is not larger than 1/6 inch. No chips, cracks or breaks are present.

What is the maximum safe clearance of a tool rest on a pedestal grinder?

Adjustable work rests must also be installed and adjusted to maintain a maximum clearance of 1⁄8-inch between it and the wheel. Tongue guard exceeds 1/4-inch from grinder wheel. Tongue guard is missing on this grinder. No tongue guard and the work rest exceeds 1/8-inch from grinder wheel.
