Which configuration has highest current gain
The common emitter amplifier configuration produces the highest current and power gain of all the three bipolar transistor configurations.
Which of the following has highest current gain?
Explanation: Current gain in CE configuration is β = ΔIC/ΔIB. IC >> IB , hence it is maximum.
Which type of amplifier provides highest current gain?
Class D amplifier is the highest power efficient amplifier class in the A, B, AB, and C and D segment. It has smaller heat dissipation, so small heatsink is needed.
In which configuration voltage gain is high?
Common emitter amplifies both voltage as well as current. Common collector gives high current gain but its voltage gain is 1 (ideally). Common base gives high voltage gain but its current gain is 1 (ideally).In which configuration current gain is low?
CharacteristicCBCCOutput ImpedanceHighLowVoltage GainHighLowCurrent GainLowHighPhase shift0°0°
What is common emitter current gain?
The current gain of the common emitter amplifier is defined as the ratio of change in collector current to the change in base current. The voltage gain is defined as the product of the current gain and the ratio of the output resistance of the collector to the input resistance of the base circuits.
What is current gain formula?
Current gain is the ratio of the change in the collector current to the change in the emitter current in a transistor. … Now, substitute the value of the change in the emitter current as 5 mA and 0.99 as the current gain in the formula α=△Ic△Ie to determine the change in the collector current in the transistor.
Which transistor configuration has lowest voltage gain?
Transistor Configuration Summary TableTransistor ConfigurationCommon BaseCommon Collector (Emitter Follower)Voltage gainHighLowCurrent gainLowHighPower gainLowMediumIn which configuration the current gain of the transistor amplifier is lowest?
The configuration in which the current gain of the transistor amplifier is lower is a common base.
Which element has biggest size in transistor?- A transistor is made of three elements emitter, collector, base.
- Emitter works as a negative lead, collector works as a positive lead and base helps to activate the transistor.
Which power amplifier has the highest efficiency?
The amplifier that has the highest efficiency is a class D amplifier. It has the highest power efficiency compared to other analogue classes such as A, B, AB, and C amplifiers. The D amplifier basically makes use of non-linear switching technology and the output devices can be either on or off.
Which transistor configuration provides nearly unity current gain?
This type of bipolar transistor configuration is a non-inverting circuit in that the signal voltages of Vin and Vout are “in-phase”. The common collector configuration has a voltage gain of about “1” (unity gain). Thus it can considered as a voltage-buffer since the voltage gain is unity.
Which power amplifier has highest efficiency Mcq?
Class C power amplifier has the highest collector efficiency.
What is BJT amplifier?
What is BJT? BJT (bipolar junction transistor) are widely used an amplifier, oscillator, switch etc. It is a current-driven device (MOSFET is voltage driven), the output current is equal to the input current times a factor which is called Gain. A basic BJT has three pins: the Base, Collector, and Emitter.
Which configuration of transistor is the output impedance the highest?
Output impedance or source impedance will be higher for the common base arrangement. So, the correct answer is “Option C”.
What are the three transistor configurations?
The three types of configurations are Common Base, Common Emitter and Common Collector configurations. In every configuration, the emitter junction is forward biased and the collector junction is reverse biased.
What is a current gain?
The current gain for the common-base configuration is defined as the change in collector current divided by the change in emitter current when the base-to-collector voltage is constant. Typical common-base current gain in a well-designed bipolar transistor is very close to unity.
What is the maximum current in a transistor?
Some transistors may only be rated for a maximum of 10-100mA of current to flow through them. If you supply a current over the maximum rating, the transistor might blow up.

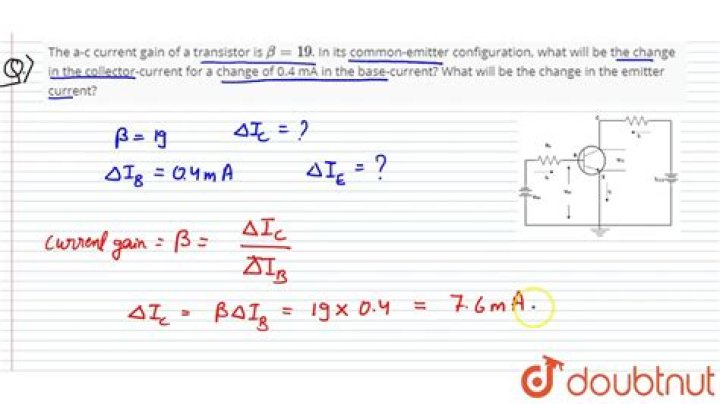

What is current gain CE configuration?
Current gain: It is the ratio of change in output current divided by change in input current. For common CE (Common Emitter) configuration, it is the ratio of change in collector current divided by change in base current and denoted by the symbol β
Why is CE configuration most popular in amplifier circuit?
The CE configuration is the most widely used configuration and n-p-n transistors are the most commonly used transistors. Common emitter transistors are used most widely, because a common emitter transistor amplifier provides high current gain, high voltage gain and high power gain.
Which amplifier has highest input impedance?
Basic Analog Electronics Although the input impedance of most op amps is quite large, the actual input impedance of the circuit depends on the configuration. The noninverting op amp has the highest input impedance, that of the op amp itself.
Which amplifier has current gain is less than unity?
It is worth noting that the current gain of a common-base amplifier is always less than unity. However the voltage gain is more, but it is a function of input and output resistances (and also the internal resistance of the emitter-base junction).
Which transistor is most suitable for high frequency circuit?
The gallium arsenide field-effect transistor (GaAsFET) and the bipolar-junction transistor (BJT) are the two most commonly used devices in the design of amplifiers, oscillators and mixers at high frequencies. BJTs used in UHF and microwaves are usually of planar npn silicon type.
What is the current gain value of common emitter transistor amplifier Mcq?
TRANSISTOR CONFIGURATIONCOMMON BASECOMMON EMITTERCurrent gainLowMediumPower gainLowHighInput / output phase relationship0∘180∘Input resistanceLowmedium
Is the region of transistor which has highest conductivity?
Since emitter has highest doping among base, emitter and collector. Therefore Also it will have highest conductivity.
How many PN junction has a transistor?
The Transistor is a three terminal solid state device which is formed by connecting two diodes back to back. Hence it has got two PN junctions.
Which is Beta's current ratio?
The common-emitter current gain (β) is the ratio of the transistor’s collector current to the transistor’s base current, i.e. And the common base DC current gain (α) is a ratio of the transistor’s collector current to the transistor’s emitter current, i.e.
Which amplifier has highest efficiency class A B or C?
The Class C Amplifier design has the greatest efficiency but the poorest linearity of the classes of amplifiers mentioned here. The previous classes, A, B and AB are considered linear amplifiers, as the output signals amplitude and phase are linearly related to the input signals amplitude and phase.
Which type of amplifier is best?
Class A amplifiers are commonly regarded as the best type of amplifier, hence their class A name. This is because they use 100% of the input signal which creates a better sound due to low distortion levels.
Which IC is best for audio amplifier?
If you are looking for an economical method then 810 audio amp chip is great. It has a pre amp section which can be tuned for both bass and treble . The amp provides upto 11–12 Watts rms which is more than sufficient for regular room listening.
Which BJT amplifier configuration has unity current gain?
The emitter follower can be used as a voltage buffer because it has a high input impedance, and a low output impedance and a unity gain. It is also the common-collector amplifier: one of the three basic configurations of transistor amplifiers.
