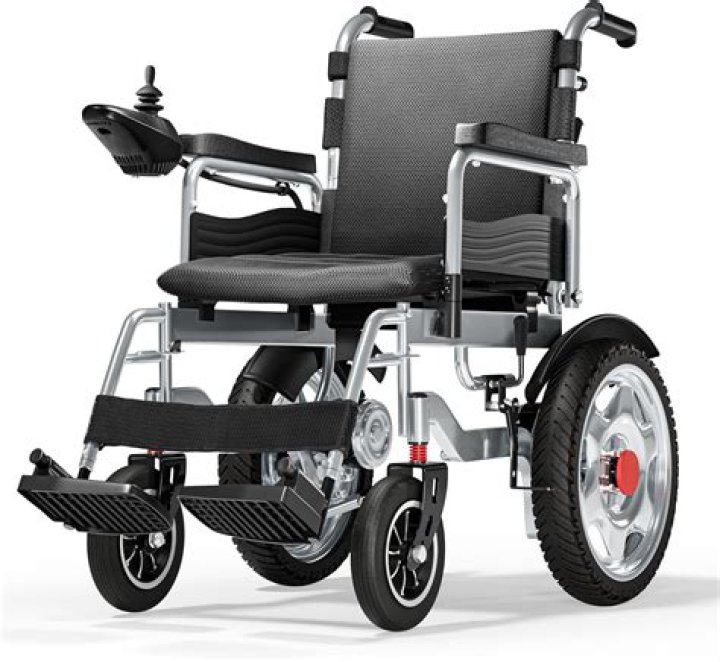

Which motor is used in wheelchair

Most wheel- chairs utilize two permanent magnet DC motors (PM motors), with two 12 V batteries providing a 24 V supply. PM motors have a linear torque- speed profile making them easy to control. Under loads typical for power wheelchairs, DC PM motor can attain lower efficiency.

What size motor is in an electric wheelchair?

As for knowing the powers, experience. Most wheelchairs use one 250W motor, most mobility vehicles use two 250W motors.

Can you put a motor on a wheelchair?

The SERVO power assist wheelchair device can be mounted to almost any wheelchair. High-capacity motors attach to the wheels of your wheelchair, and respond to you pushing the wheels by adding power of its own – without noise, thanks to its gearless design.

How many horsepower is a wheelchair motor?

Motor horsepower ratings for electric wheelchairs run from 0.87 hp to 2.5 hp. Physical dimension also vary – travel-sized motorized chairs tend to be the small and range in length from 28.7” to 37.8,” width can range from 21″ to 21.7” and height can range from 19” to 30.5”.

How does a motorized wheelchair work?

While a car has one engine or motor to operate both drive wheels (or all drive wheels in the case of a four-wheel drive vehicle), a power wheelchair has two motors. Each motor operates a drive wheel on either side of the power wheelchair. The motors draw power from the batteries and move the drive wheels.

How many amps are wheelchair batteries?

Capacity. Capacity is how long the battery can function and is expressed in ampere-hours (Ah). If an electric wheelchair runs at 10 amperes, a typical deep-cycle lead-acid battery has about 30 to 90 Ah, which means it can run continuously for 3 to nine hours.

How powerful is a wheelchair motor?

Wheelchair motors are very powerful and can handle 300+ lbs. They are relatively cheap for their size(~$75 ebay) and are very easily found online or in repair stores. Try to buy a motor with the wheels still attached.

What wattage are mobility scooters?

For a 180 lb. rider a motor rating of 300 watts or above will do the trick. Generally speaking, the higher the watt rating of the motor the better your electric scooter will tackle demanding terrain. Riders heavier than 180 lbs. will want to compensate by purchasing a scooter with an even higher watt rating.

What AMP is a mobility scooter?

The battery and charger will differ based on your mobility scooter model. Pride Mobility scooters use chargers that range from 2 to 8 amps.

What materials are used to make a wheelchair?

Most modern wheelchairs are made using primarily steel, aluminum, and titanium. Steel is limited to standard wheelchairs that have folding-frame mechanisms. Aluminum is used throughout the wheelchair industry, primarily in ultralight wheelchairs and some lightweight wheelchairs.

Article first time published on

What is Powerchase wheelchair?

What is a wheelchair power assist device? Power assist is simply the use of technology to assist with the “push” phase of independent manual wheelchair propulsion. … This “assist” can come through the wheels, or through a rear removable add-on to the wheelchair.

How do you make a power wheelchair go faster?

1. Use a damp sponge to remove buildup and debris from the axles. Any type of obstruction can hinder the performance of your chair.
2. Allow the battery to receive a full charge. …
3. Lower the power elevating seat if your chair is quipped with one.

What is the best electric wheelchair to purchase?

• Best Electric Wheelchairs of 2021.
• Shoprider Streamer Sport.
• Golden Technologies LiteRider Envy Power Wheelchair.
• Drive Medical Cirrus Plus EC.
• KD Smart Chair Move Lite Folding Power Chair.
• Drive Medical Trident HD.
• Hoveround LX-5 Power Wheelchair.
• Merits Health Gemini P301.

What voltage are wheelchair batteries?

Mobility scooter batteries are 12 vDC each. Most mobility scooters contain two batteries combined to operate on 24 volts.

What is a manual wheelchair?

A Manual Wheelchair is one that is propelled by the user. It is usually done by pushing on round bars that surround the wheels. This wheelchair also has handles on the back so it can be pushed by another person.

What three types of batteries are used for propelling wheelchairs?

The three battery types are: lithium ion, non-spillable and spillable.

What batteries are used in mobility scooters?

• Lead acid batteries are cheaper, lighter and last longer, but need the most maintenance. …
• Gel cell batteries are more expensive and last for a shorter time than lead acid batteries. …
• AGM batteries use newer technology, and are the most expensive.

What type of battery is in a mobility scooter?

Scooters and wheelchairs all come with the same type of batteries: VLRA (valve-regulated lead acid) or “sealed” batteries. There are two different types within this – AGM (absorbed glass mat) and Gel batteries.

Which batteries are best for mobility scooters?

Lithium Ion: If price is of no consequence for mobility scooter batteries, lithium batteries are the way to go. They’re more expensive than SLA, AGM, and Gel batteries, but they can last up to 10 times as long.

Which is best motor in electric scooter?

Brushless DC Motors Emerging in the 1970s, BLDC motors are more efficient, have better power-to-weight ratios, and are more durable. They also tend to run quieter, and are less prone to overheating. Most quality electric scooters will have a BLDC motor.

Which motor is used in electric scooter?

There are two types of motor types used in electric scooters: brushed direct current (DC) motors and brushless DC electric motors.

What kind of motors do electric scooters use?

Electric scooters have brushless direct current (BLDC) electric motors that are built into the hub of wheels. All electric kick scooters have at least one motor while more powerful ones will have two.

What size is a wheelchair?

A typical wheelchair has a length of 42” (106.7 cm), a height of 36” (91.4 cm), seat heights around 19.5” (49.5 cm), and a width of 25” (63.5 cm). Wheelchairs are chairs with wheels designed to serve users that are unable to, or have difficulty with, walking due to injury, illness, or disability.

Do wheelchairs rust?

If water gets into the bearings, it can cause rust, and the wheelchair will not roll smoothly. Check arm rests, leg rests, and hand rims for rough spots or sharp edges. … Check the wheelchair frame for cracks or dents. A crack may cause the frame to break.

What is the fastest electric wheelchair?

A terminally ill man who is paralysed from the neck down has set a world speed record in a custom-made electric wheelchair. Jason Liversidge, who has motor neurone disease, reached nearly 67mph (108km/h) at Elvington Airfield, near York.

What is the fastest mobility scooter?

• E-Wheels EW-36 (Up to 18 MPH) …
• Raptor Mobility Scooter (Up to 14 MPH) …
• Afiscooter C3 (Up to 9.3 MPH) …
• Triaxe Sport (Up to 12 MPH) …
• EW-18 Stand n Ride Turbo (Up to 15 MPH)

How do you slow down a wheelchair?

To slow down or steer, the wheelchair user should hold the hands still ahead of top dead center (at about the 1:00 o’clock position, using the clock analogy) and let the hand-rims slide through his/her fingers. It is generally better to provide continuous friction than to use a jerky grasp-and-release method.

Can you push a motorized wheelchair?

The answer to this is yes. Most electric wheelchairs will allow you to push them manually. This can be done by disengaging the motors, for most chairs it is quite simple and can be done with a couple of clicks. This can be helpful for several reasons, for example: If your battery runs out, or your chair breaks down.

What is mid wheel drive?

With a mid-wheel configuration, the drive wheels on a power base are literally in the middle of the power wheelchair. The user’s center of gravity is almost even with the center of the drive wheels. This design creates the tightest turning radius. Mid-wheel drive motorized wheelchairs can do a complete 360-degree turn.

How much is a motor wheelchair?

Typically, the cost of an electric wheelchair can range anywhere from around $1,000 to $15,000. This depends on the brand, quality, size, features, and requirements. However, the average electric wheelchair for the regular user can be expected to be priced at around $2000 to $3000.

What is the difference between a scooter and a power wheelchair?

Mobility scooters are equipped with a tiller and handle bars, as opposed to a power wheelchair, which is operated using a joystick. … An electric scooter typically has three or four wheels, whereas an electric wheelchair typically has six wheels or more.
