How does a rising rate fuel regulator work

Rising rate regulators are used. By having it react to engine vacuum (hose to the plenum), it temporarily increases fuel pressure on demand. By doing so, you are injecting more fuel though the injector duration remains the same.

How does a boost referenced fuel regulator work?

The boost reference originates at the induction system of an engine, and acts upon the diaphragm in the regulator, thereby enabling the regulator to compensate for boost pressure. … Fuel line pressure is high from the fuel pump to the regulator, and then less from the regulator to the carburetor, or fuel rail.

Does a fuel pressure regulator increase horsepower?

The noob belief amongst amateur tuners is increasing the fuel pressure up a few psi from the regulator will mean the injectors are getting moaar fuel which will increase the horsepower. Wrong. Truth be told, aftermarket FPRs are not necessary and the factory OEM FPR will do the job just fine.

How does a adjustable fuel pressure regulator work?

A mechanical fuel-pressure regulator is a simple device. Inside, you have a spring that controls a diaphragm. That spring has a set spring rate and you regulate fuel pressure by adjusting tension on the internal spring. … As you tighten the spring, that increases the pressure at which the diaphragm inside opens.

How does a non return fuel pressure regulator work?

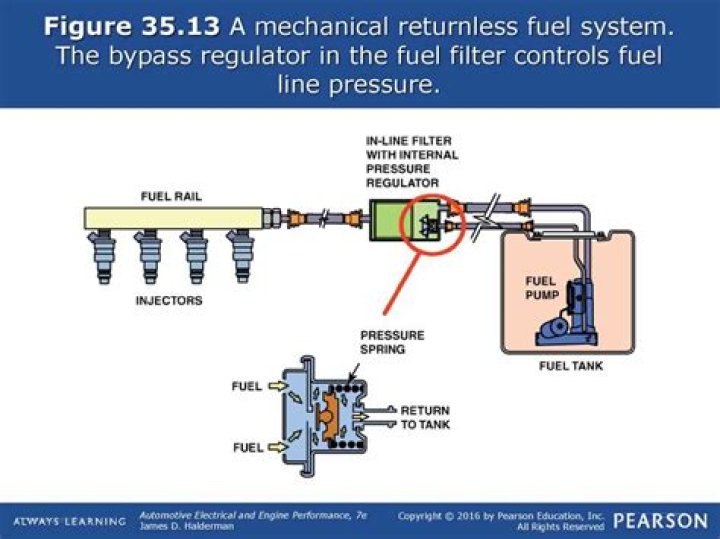

Non-return style regulators are characterized by their lack of a fuel return line from the regulator back to the fuel tank. … Fuel flow and pressure are controlled by the fuel control valve that is actuated by a diaphragm (D). The diaphragm’s movement up and down is limited by a spring (E).

Does a electric fuel pump need a fuel pressure regulator?

When choosing a fuel pressure regulator for your ride, you need to take into consideration several factors. … Most lever style mechanical fuel pumps don’t require a regulator and some electric fuel pumps even have the regulator built right into them, and eliminating the need to purchase an external unit.

Can a fuel pressure regulator increase fuel pressure?

When the boost is applied to the top of the regulator, then the diaphragm that is attached to the bypass valve is forced down by a spring to reduce excess fuel. This causes the fuel pump to work harder, allowing the fuel pressure to increase while increasing the intake manifold’s boost pressure.

What happens when you increase fuel pressure?

If fuel pressure is too high, your vehicle’s engine could be over fueled, leading to many of the symptoms listed below. Some of these symptoms include your engine running rough, poor fuel economy and black smoke from the exhaust.

Does a fuel pressure regulator go before or after the injectors?

The optimum EFI regulator location is after the fuel rail(s) when possible. All pump flow, minus engine consumption, must always run to the regulator, wherever it is. Putting it after the fuel rail means all fuel must run through the fuel rail, and over the injector inlet, at all times.

Where should a fuel pressure regulator be installed?

In many cases, you can mount the regulator in a location to satisfy ease of installation, adjustment, and appearance. However, in the cases of high power applications, extra low fuel pressure systems, and high-g launches, it’s best to mount the regulator as close to the fuel delivery destination as possible.

Article first time published on

What is a Deadhead fuel regulator?

The column of fuel in the feed line deadheads at the regulator, which then holds pressure at a steady 4.5- to 9 psi between the regulator and the carburetor. In essence, a deadhead regulator is merely a restriction in the fuel line that lowers fuel pressure between the tank and the carburetor by decreasing fuel flow.

How much fuel pressure is needed for a carburetor?

Fuel pressure should be set between 6 and 8 psi for a gasoline carburetor. An alcohol carburetor is a different animal with very different requirements. The Alky carburetor will require 4 to 5 psi at idle and 9 to 12 psi at wide open throttle. Remember, fuel pressure is not a substitute for volume!

What are the symptoms of a bad fuel pressure regulator?

Engine misfires/poor acceleration.
Black smoke coming from the exhaust.
Spark plugs appear black.
Reduced fuel mileage.
Gasoline in the vacuum hose.
Engine backfires.
Engine won’t crank.
Excessive fuel pump noise.

Will a bad fuel pressure regulator cause a no start?

More than just the engine misfire, the engine will also most probably not start when the fuel pressure regulator is bad. Regardless of how many times you start the engine, it won’t turn on. This is one of the most frustrating situations that can confront any driver, especially when you are in a hurry.

Does a carbureted engine have a fuel pressure regulator?

Most carbureted engines use this style of regulator which is placed between the fuel pump and the carburetor. … These regulators come in a variety of styles and typically regulate fuel pressures in the 1-9 psi range. They’re perfect for use with most low pressure mechanical as well as some electric fuel pumps.

Does an electric fuel pump need a return line?

A pump does never need a return line. A pressure regulator can need one though. The pressure regulator is placed between the pump amd the engine, and keeps the pressure constant, which is needed to precisely deliver fuel.

How do I check my fuel pressure without a gauge?

Disconnect the hose coming from the pump to the filter and block the passage of the hose tightly with your finger. You can then start the car. If you feel that the fuel is pushing your finger hard, it means you have good pressure.

What happens if a fuel pressure regulator is stuck open?

When the fuel pressure regulator gets stuck and builds up more pressure then it should; it‘ll cause the injectors to deliver too much fuel; causing a rich mixture (high pressure) condition.

What should fuel pressure be at idle?

When an engine is idling, it may be pulling 20 inHg of vacuum, which translates to roughly 10psi. The reference to the regulator will allow it to adjust and lower the pressure in the rail to 48psi, resulting in 58psi effective pressure, which is the same as the base pressure.

What happens when a pump Deadheads?

Deadhead the pump for an extended period. Deadheading means you shut off the pump’s ability to discharge fluid by closing a valve. The fluid will churn inside the pump until it heats into a vapor. … The pump’s impeller is now receiving little to no fluid, usually causing irreparable damage.

What is a fuel log?

This fuel log ensures adequate fuel pressure to carburetor and helps eliminate fuel starvation problems. Fuel pressure is regulated after carburetor has been supplied, and not before. … Carburetor fuel line also has 1/8″ NPT outlet for fuel pressure gauge (fittings sold separately).

How do you lower the pressure on a fuel pump?

Locate the rubber fuel hose that runs from the fuel pump to the carburetor. …
Install the proper size hose fittings in each end of the pressure regulator. …
Place a hose clamp over each end of the fuel hose. …
Tighten the hose clamps.

Will too much fuel pressure to carb?

Fuel pressure to the carburetor will range from 4 psi to 7 psi, with some vehicles using higher pressure. Using the wrong fuel pump that delivers excess pressure can cause problems ranging from poor performance and lower gas mileage to flooding and carburetor damage.
